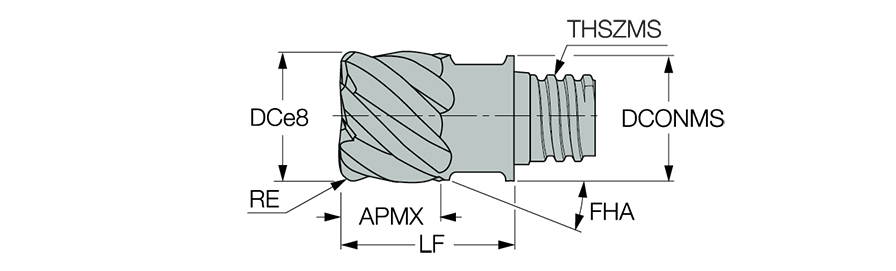

MM EC120B09R1.0-6T08 IC908
End Mill Head; 12 mm Dia. × 9 mm LOC × 11.7 mm Shank Dia. × 24.45 mm OAL ; 6 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Rampdown | Shouldering | | Coating | TiAlN |
| Cutting Diameter (DC) | 12 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Corner Radius (RE) | 1 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | End Shape | 90° |
| Cutting Diameter Maximum (DCX) | 12 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Body Material | Carbide |
| Functional Length (LF) | 16.5 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 45 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 24.45 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 6 flute solid carbide endmill heads with 30°, 45° helix and corners with different radius | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.067
