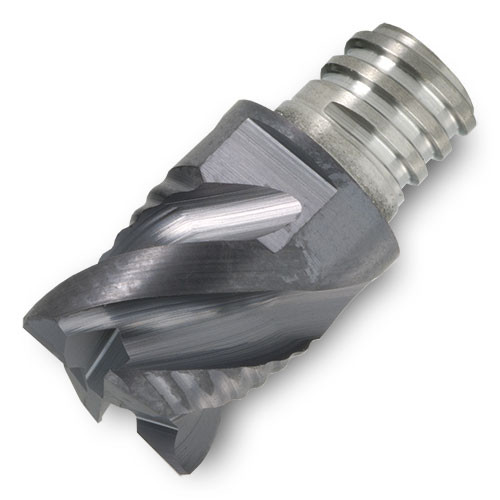

47D-6247TRRU06 IN2005
End Mill Head; 5/8″ Dia. × 0.47″ LOC × 0.7″ Max Depth × 0.6″ Shank Dia. × 1.098″ OAL ; 4 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 5/8″ | Overall Length (OAL) | 1.098″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Flute Count (NOF) | 4 | Coating | TiAlN |
| Corner Radius (RE) | 0.063″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.47″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Functional Length (LF) | 0.8″ | Body Material | Steel |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.063 R |
Product Features
| Family Description | 2 serrated edges & 2 smooth edges to diffuse vibration Corner: chamfer & radius options | Country of Origin | Israel |
