46D-7555TSRN01 IN05S

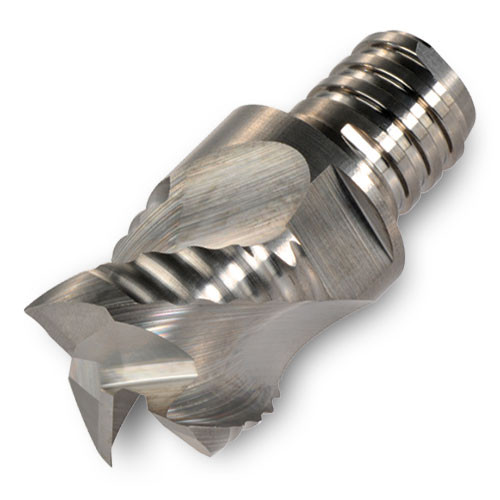

End Mill Head; 3/4″ Dia. × 0.55″ LOC × 0.7″ Max Depth × 0.72″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; IN05S
| Cutting Diameter (DC) | 3/4″ | Overall Length (OAL) | 1.098″ |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | IN05S |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.008″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.55″ | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Body Material | Steel |
| Functional Length (LF) | 1″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.008 R |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.231
