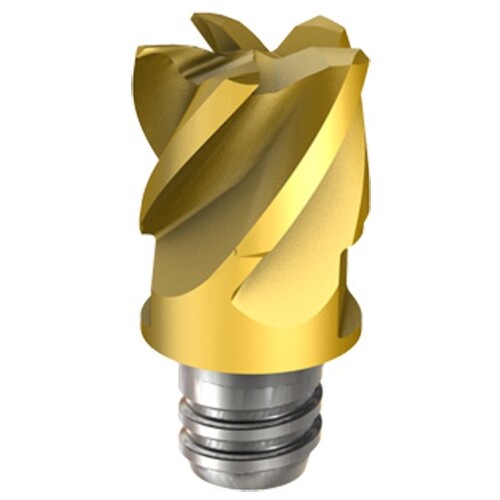

MM EC.500H37C20-5T08CF IC308
End Mill Head; 1/2″ Dia. × 0.374″ LOC × 0.7″ Max Depth × 0.488″ Shank Dia. × 0.963″ OAL ; 5 FL ; T08 ; Carbide ; TiCN ; IC308
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coating | TiCN |
| Cutting Diameter (DC) | 1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Corner Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.374″ | Ramping Angle Maximum (RMPX) | 4 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 0.65″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.963″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC308 |
Product Features
| Family Description | Interchangeable carbide heads. 5 flute with different helix (35 - 41°) and variable pitch for roughing and finishing operations. High material removal rates CHATTERFREE, for machining high temperature alloys like titanium and Inconel. | Country of Origin | Israel |
| Remarks | For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.071
