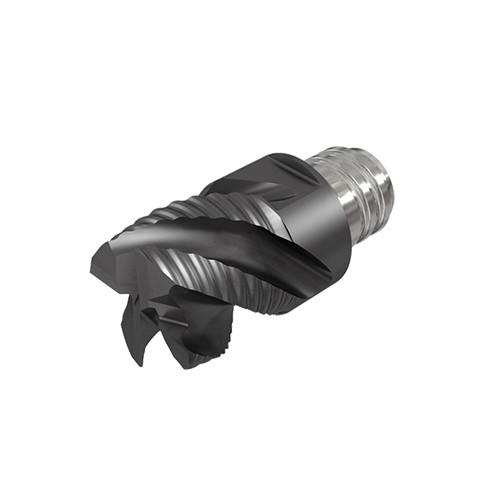

MM ERS.625B47-5T10 IC908
End Mill Head; 5/8″ Dia. × 0.47″ LOC × 0.6″ Shank Dia. × 1.263″ OAL ; 5 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |

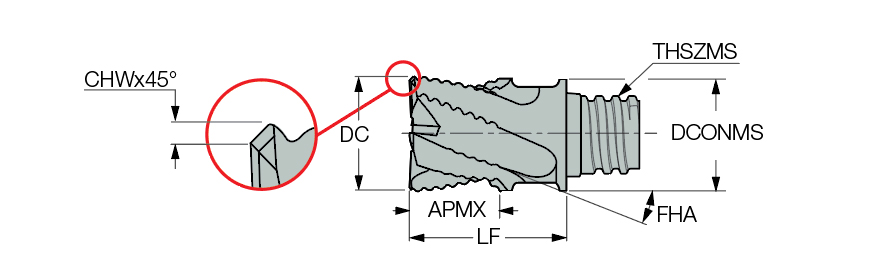

| Cutting Diameter (DC) | 5/8″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.016″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Maximum Feed per Tooth (fz(max)) | 0.0042 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.47″ | End Shape | 90° Rougher |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Functional Length (LF) | 0.8″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 1.263″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads, for high metal removal applications | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.112
