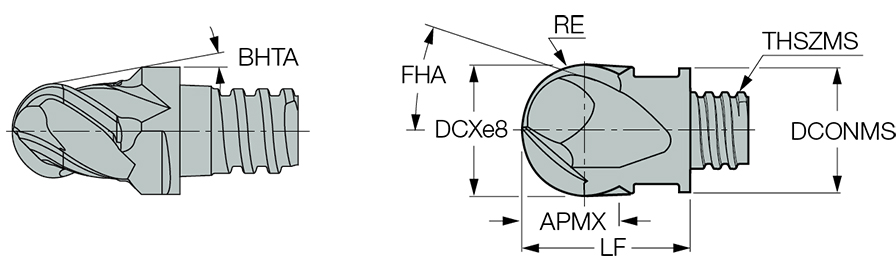

MM EB.375A27-2T06 IC908
End Mill Head; 3/8″ Dia. × 0.28″ LOC × 0.36″ Shank Dia. × 0.772″ OAL ; 2 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Profiling | | Overall Length (OAL) | 0.772″ |
| Cutting Diameter (DC) | 3/8″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.19″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/8″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.28″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.36″ | Body Material | Carbide |
| Functional Length (LF) | 0.51″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide ball nose milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.041
