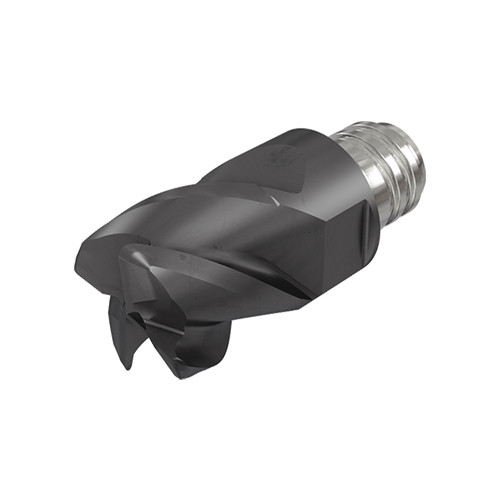

MM EC.750B62R000-4T12 IC908
End Mill Head; 3/4″ Dia. × 0.62″ LOC × 0.726″ Shank Dia. × 1.543″ OAL ; 4 FL ; T12 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |

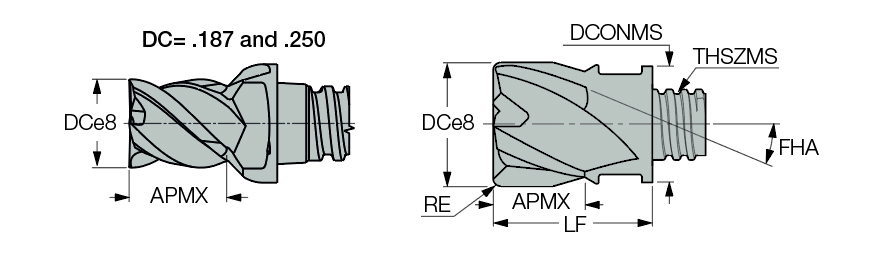

| Cutting Diameter (DC) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 0.62″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.726″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 1″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 1.543″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
Product Features
| Family Description | Interchangeable 4 flute solid carbide endmill heads with 30°, 45° helix and various corner radii | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threa ded connection |
Shipping Info
Package Length
3.00000
Package Width
3.00000
Package Height
1.25000
Package Weight
0.24
