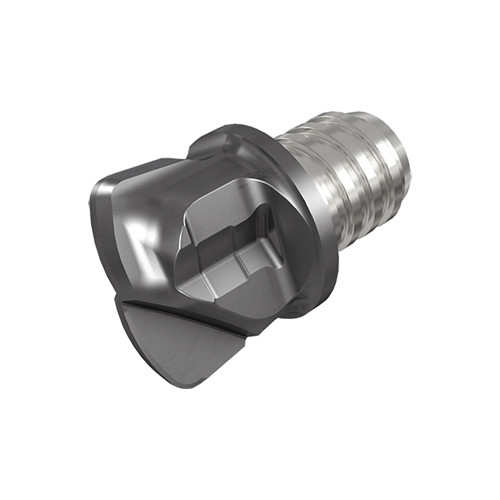

MM FF375R06-L49-2T06 IC908

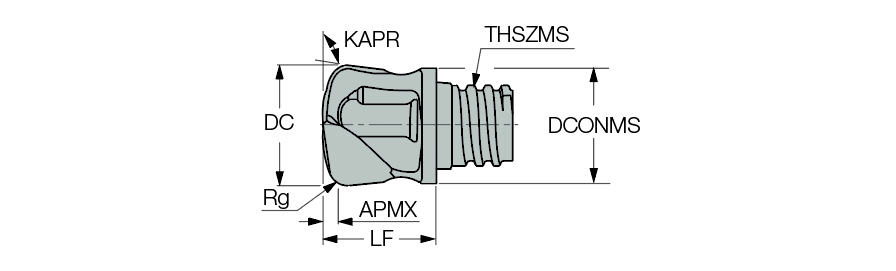

End Mill Head; 3/8″ Dia. × 0.02″ LOC × 0.36″ Shank Dia. × 19.1″ OAL ; 2 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | | Coating | TiAlN |
| Cutting Diameter (DC) | 3/8″ | Tool Cutting Edge Angle (KAPR) | 100 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Maximum Feed per Tooth (fz(max)) | 0.0236 ″/tooth |
| Corner Radius (RE) | 0.059″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | End Shape | Profile |
| Cutting Diameter Maximum (DCX) | 3/8″ | Ramping Angle Maximum (RMPX) | 7 Degrees |
| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Fast Feed Solid Endmill |
| Connection Diameter Machine Side (DCONMS) | 0.36″ | Body Material | Carbide |
| Functional Length (LF) | 0.49″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 19.1″ | Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 2 flute FEEDMILL solid carbide heads for milling at very high feeds and small D.O.C. | Country of Origin | Israel |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.037
