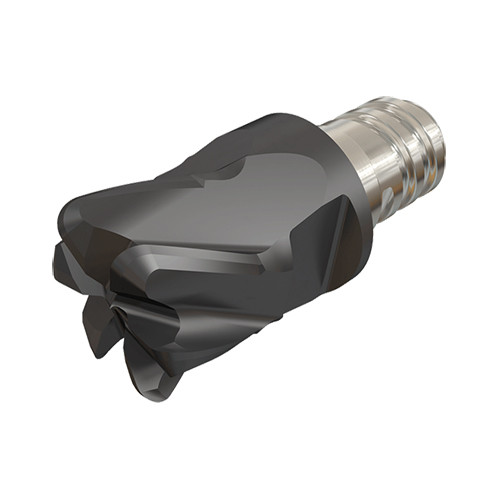

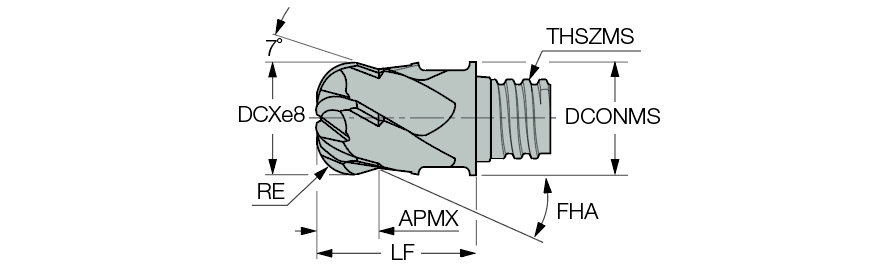

MM ETR.500A27R125-6T08 90 IC908
End Mill Head; 1/2″ Dia. × 0.27″ LOC × 0.48″ Shank Dia. × 0.963″ OAL ; 6 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Profiling | Rampdown | Slotting | | Overall Length (OAL) | 0.963″ |
| Cutting Diameter (DC) | 1/2″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 1/8″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | End Shape | Ball Nose |
| Cutting Diameter Maximum (DCX) | 1/2″ | Ramping Angle Maximum (RMPX) | 9 Degrees |
| Depth of Cut Maximum (APMX) | 0.27″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Body Material | Carbide |
| Functional Length (LF) | 0.65″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | Interchangeable 6 flute torodial solid carbide milling heads | Country of Origin | Israel |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.07
