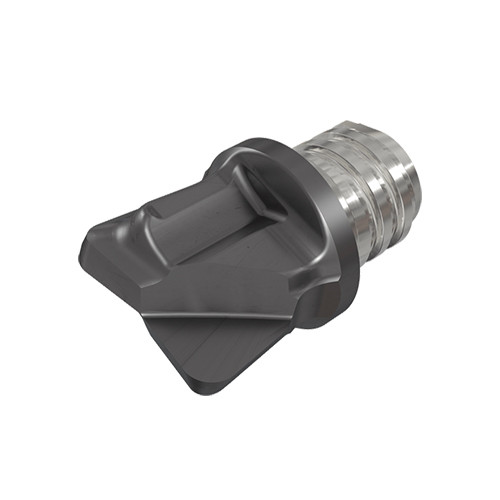

MM HT120N06R2.0-2T08 IC908
End Mill Head; 0.472″ Dia. × 0.232″ LOC × 0.453″ Shank Dia. × 3/4″ OAL ; 2 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | Undercutting | | Coating | TiAlN |

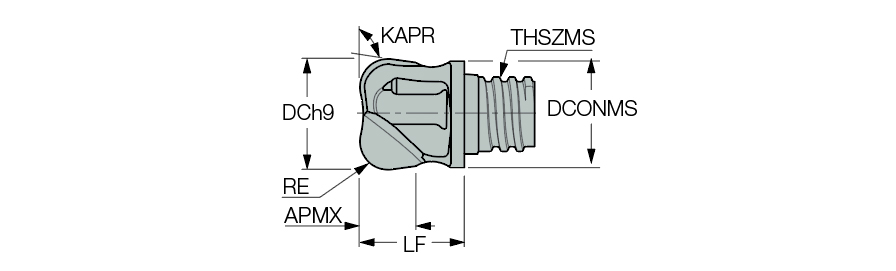

| Cutting Diameter (DC) | 0.472″ | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ | End Shape | Profile |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.232″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Body Material | Carbide |
| Functional Length (LF) | 0.437″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 3/4″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 2 flute torodial solid carbide milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.043
