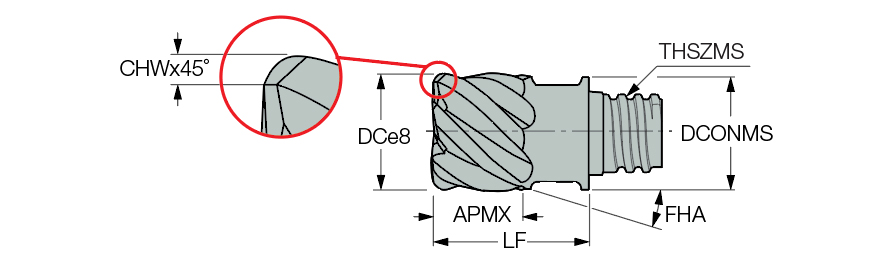

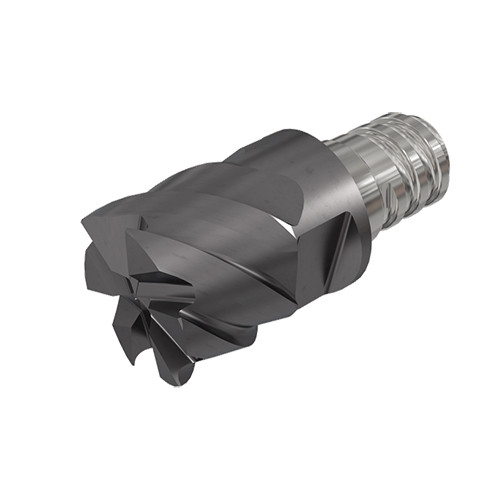

MM EC.312D20C004-6T05 IC903
| Application | | Helical Interpolation | Rampdown | Shouldering | | Coating | AlTiN |
| Cutting Diameter (DC) | 0.312″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.004″ |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2″ | End Shape | 90° |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Ramping Angle Maximum (RMPX) | 2 Degrees |
| Functional Length (LF) | 0.39″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Helix Angle (FHA) | 50 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 0.67″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC903 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
Product Features
| Family Description | Interchangeable 6, 8,10 flute solid carbide endmill heads with 50° Helix for machining hardened steel (up to 65 HRC). | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.035
