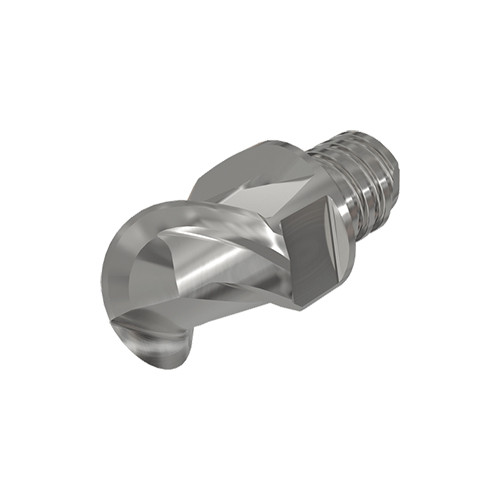

MM EBA.750B50-2T12 IC08
End Mill Head; 3/4″ Dia. × 1/2″ LOC × 0.726″ Shank Dia. × 1.543″ OAL ; 2 FL ; T12 ; Carbide ; Uncoated ; IC08

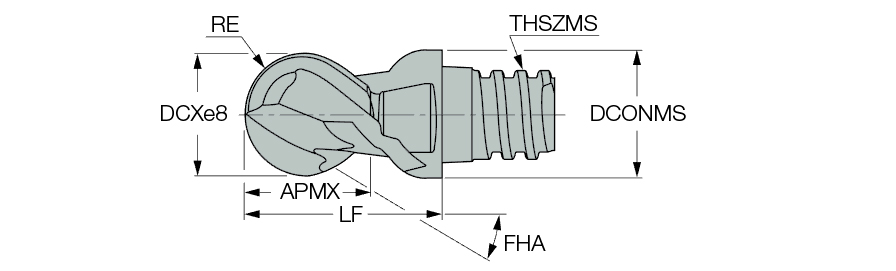

| Application | | Profiling | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 3/4″ | Overall Length (OAL) | 1.543″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Flute Count (NOF) | 2 | Coating | Uncoated |
| Corner Radius (RE) | 0.374″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/4″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.726″ | Body Material | Carbide |
| Functional Length (LF) | 1″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Interchangeable 2 flute high precision solid carbide ball nose heads for machining aluminum | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.216
