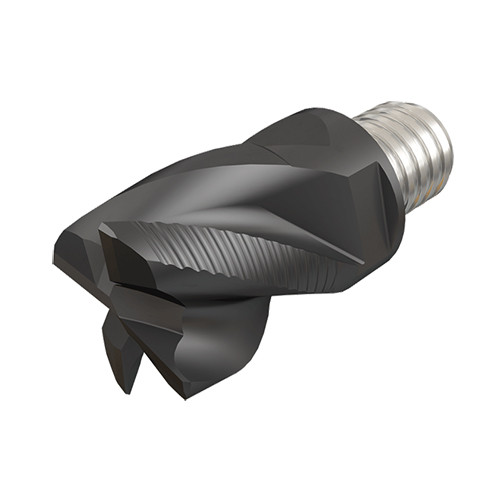

MM EFS1.00E86-4T15 CF IC908
End Mill Head; 1″ Dia. × 0.894″ LOC × 0.94″ Shank Dia. × 2.15″ OAL ; 4 FL ; T15 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |

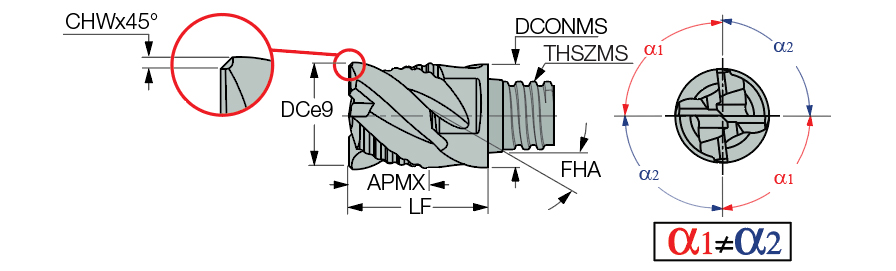

| Cutting Diameter (DC) | 1″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.024″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.894″ | End Shape | 90° |
| Connection Diameter Machine Side (DCONMS) | 0.94″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Functional Length (LF) | 1.457″ | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 2.15″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
Product Features
| Family Description | 4 flute solid carbide heads with 38° helix and variable pitch for CHATTERFREE roughing and finishing applications | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.529
