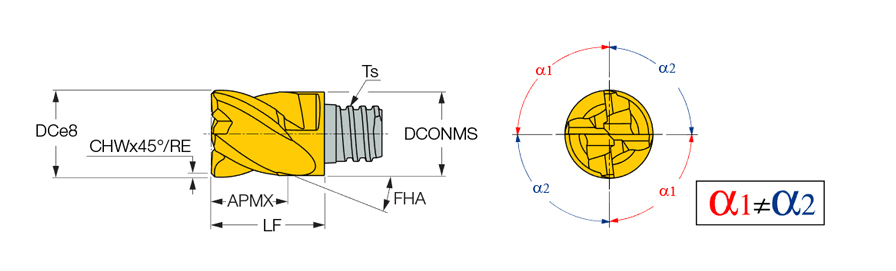

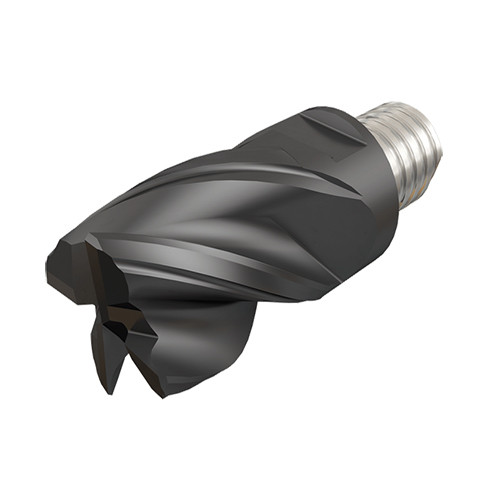

MM EC500E37R62CF-4T08 IC908
End Mill Head; 1/2″ Dia. × 0.374″ LOC × 0.488″ Shank Dia. × 0.963″ OAL ; 4 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Corner Radius (RE) | 0.061″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 0.374″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.65″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.963″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.0015 ″/tooth |
| Coating | TiAlN |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.07
