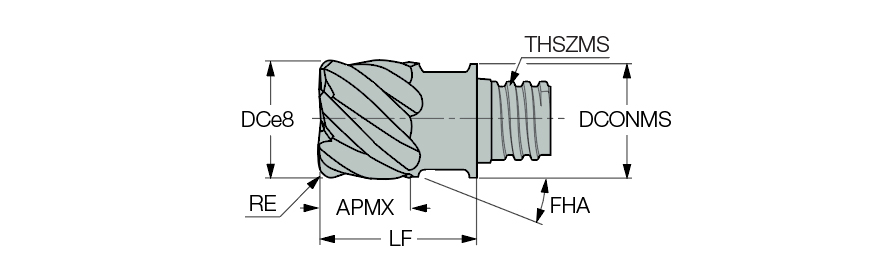

MM EC.625A47R015-8T10 IC908
End Mill Head; 5/8″ Dia. × 0.47″ LOC × 0.6″ Shank Dia. × 1.273″ OAL ; 8 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Rampdown | Shouldering | | Coating | TiAlN |
| Cutting Diameter (DC) | 5/8″ | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 8 | Measurement Type | Inch |
| Corner Radius (RE) | 0.015″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0″ | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 0.47″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 0.81″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 1.273″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 8, 10 flute 30°, 45° helix solid carbide endmill heads with corners with different radius | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.136
