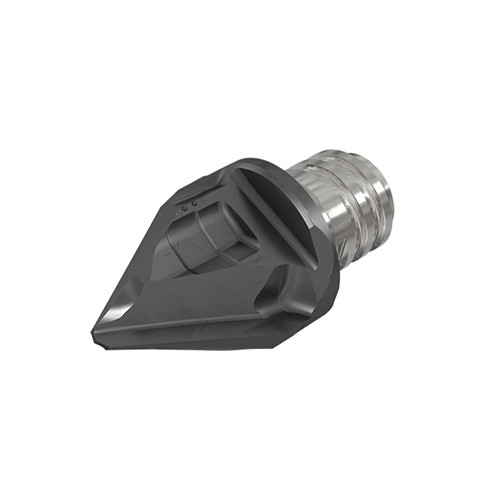

MM HCD200-060-2T12 IC908
End Mill Head; 0.102″ Dia. × 0.6102″ LOC × 0.72″ Shank Dia. × 1.516″ OAL ; 2 FL ; T12 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Coating | TiAlN |

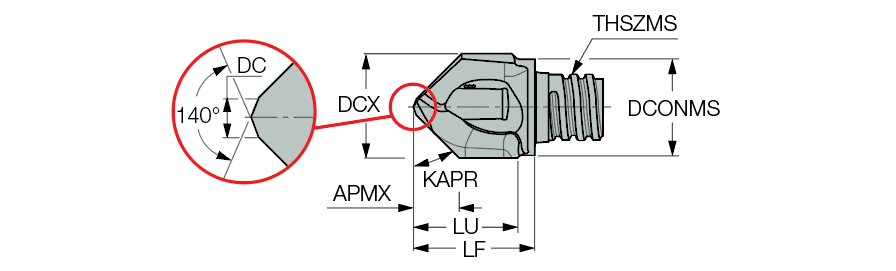

| Cutting Diameter (DC) | 0.102″ | Profile Angle (PRFA) | 140 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.787″ | End Shape | Chamfer|Countersink |
| Depth of Cut Maximum (APMX) | 0.6102″ | Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Body Material | Carbide |
| Functional Length (LF) | 0.972″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 1.516″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 2 flute solid carbide heads for chamfering, countersinking and spot drilling. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.028
