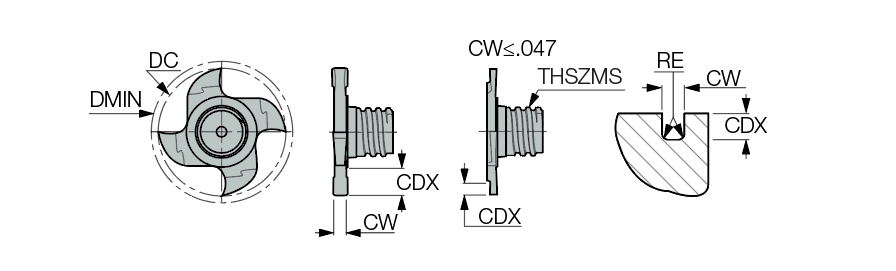

MM GRIT 28K-2.50-0.2 IC528
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 0.104″ |
| Cutting Diameter (DC) | 1.091″ | Grade | IC528 |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Coating | TiCN+TiN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0079″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.236″ | Tool Type | Solid "T" slot cutters |
| Depth of Cut Maximum (APMX) | 0.7″ | Body Material | Carbide |
| Cutting Width (CW) | 0.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron. | Country of Origin | Israel |
| Remarks | Recommended for O-rings and retaining rings K-for general steel & cast iron machining P- for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection. For clamping instructions, click on "More Info" |
Shipping Info
Package Weight
0.110
