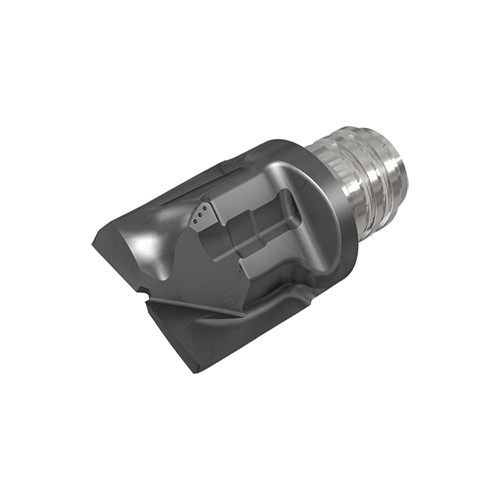

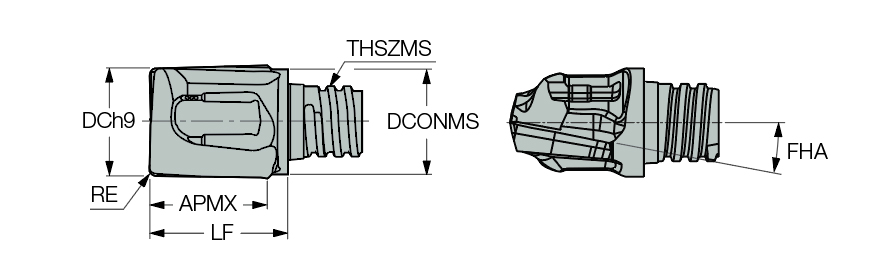

MM HC.312C31R016-2T05 IC908
End Mill Head; 0.312″ Dia. × 0.31″ LOC × 0.297″ Shank Dia. × 0.67″ OAL ; 2 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 0.312″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.016″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0″ | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 0.31″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.297″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.39″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 10 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.67″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
Product Features
| Family Description | MULTI-MASTER, interchangeable, solid carbide slot drill milling heads with two 10° helix flutes. Available with a variety of corner radii (economical type) | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.032
