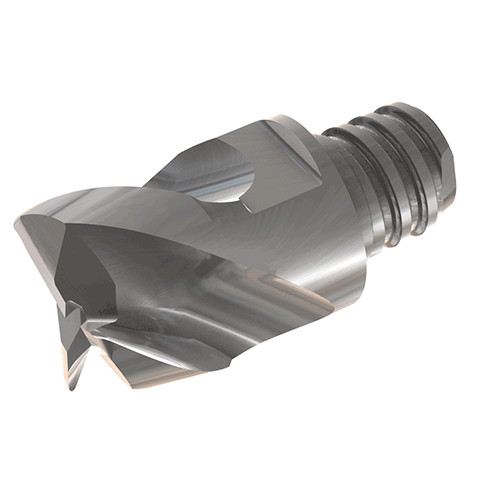

MM EA120B08R3.0-3T08 IC08
End Mill Head; 0.472″ Dia. × 0.315″ LOC × 0.461″ Shank Dia. × 0.963″ OAL ; 3 FL ; T08 ; Carbide ; Uncoated ; IC08
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | Uncoated |

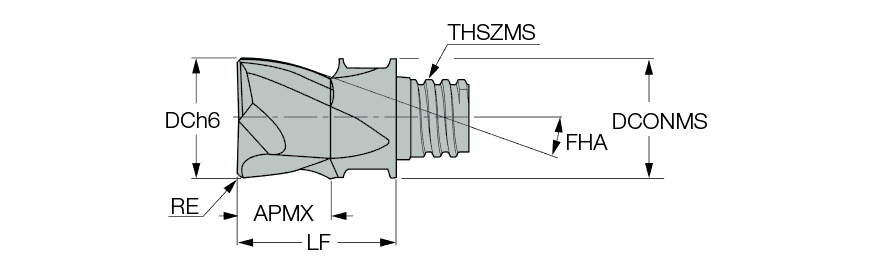

| Cutting Diameter (DC) | 0.472″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Corner Radius (RE) | 0.1181″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 0.315″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.461″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.65″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.963″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Grade | IC08 |
Product Features
| Family Description | MULTI-MASTER, Interchangeable solid carbide slot drill milling heads with two or three 45° helix flutes. Used for machining aluminum | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.063
