MM GRIT 18K-3.17-0.20 IC528

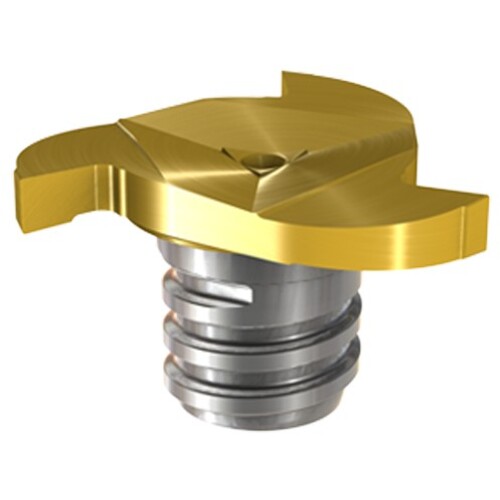

End Mill Head; 0.697″ Dia. × 0.7″ LOC × 0.15″ Max Depth × 0.96″ Shank Dia. × 0.41″ OAL ; 3 FL ; T06 ; Carbide ; TiCN+TiN ; IC528
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 0.41″ |
| Cutting Diameter (DC) | 0.697″ | Grade | IC528 |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Coating | TiCN+TiN |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0079″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.15″ | Tool Type | Solid "T" slot cutters |
| Depth of Cut Maximum (APMX) | 0.7″ | Body Material | Carbide |
| Cutting Width (CW) | 1/8″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "K" for general steel machinin, "P" Positive geometry for soft and gummy materials. | Country of Origin | Israel |
| Remarks | For clamping instructions, click on "More Info". Modification options on request. Recommended for O-rings and retaining rings. Do not apply lubricant to the threaded connection. K - for general steel machining. P - Positive geometry for soft and gummy materials. |
Shipping Info
Package Weight
0.035
