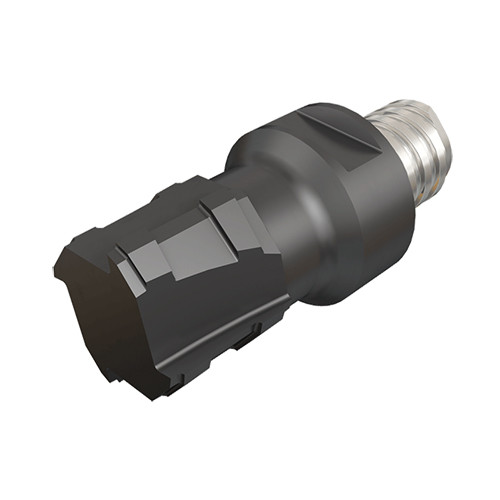

MM TS155-04T10-8238 IC908

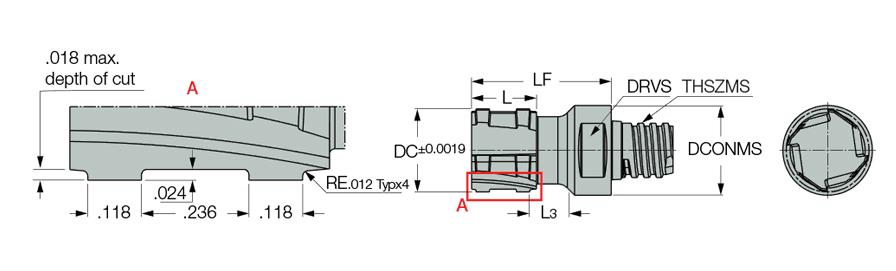

End Mill Head; 0.61″ Dia. × 0.024″ Max Depth × 0.63″ Shank Dia. × 1.801″ OAL ; 4 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | | Grade | IC908 |
| Cutting Diameter (DC) | 0.61″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.024″ | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 0.118″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 1.327″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.801″ |
Product Features

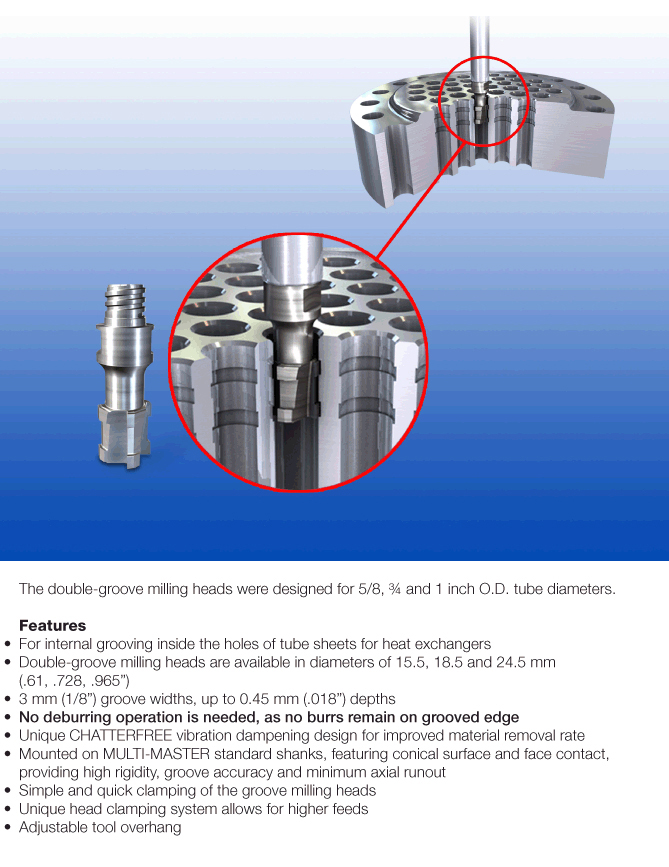

| Family Description | Double groove internal grooving heads with a threaded connection for heat exchanger tube sheets. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.193
