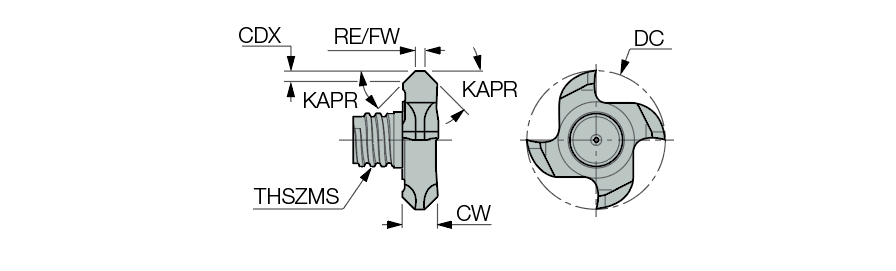

MM GRIT 22P-45A IC528
| Application | | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | | Grade | IC528 |
| Cutting Diameter (DC) | 0.854″ | Coating | TiCN+TiN |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.067″ | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.7″ | Body Material | Carbide |
| Cutting Width (CW) | 0.217″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.535″ |
Product Features
| Family Description | MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining. | Country of Origin | Israel |
| Remarks | Use carbide shanks for groove milling heads. Keys for other milling heads must be ordered separately. MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. |
Shipping Info
Package Weight
0.061
