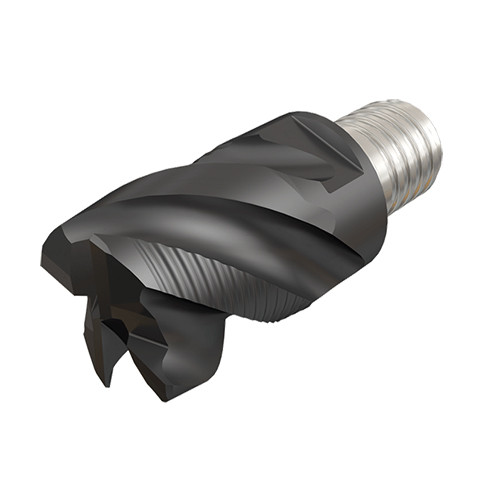

MM EFS.312B20-4T05 IC908
FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system

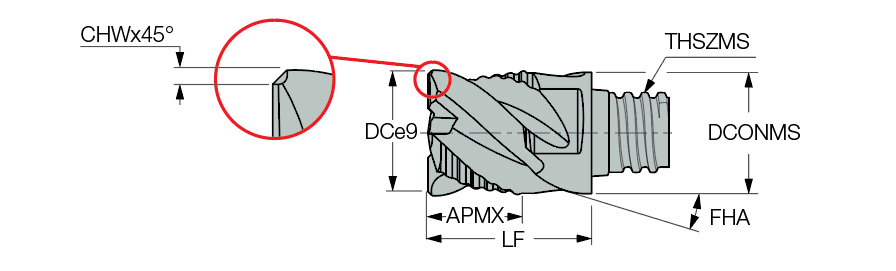

| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 0.312″ | Corner Chamfer Width (CHW) | 0.012″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0″ | End Shape | 90° Rougher |
| Depth of Cut Maximum (APMX) | 0.2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Tool Type | Solid Carbide Roughers |
| Functional Length (LF) | 0.393″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.673″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | TiAlN |
Product Features
| Family Description | FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
LocalField10
0
Package Weight
0.016
