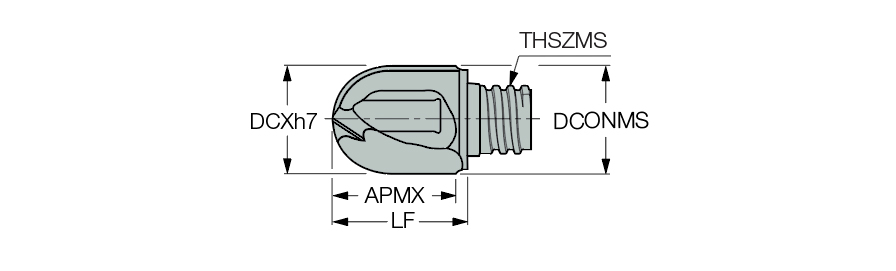

MM HRF.625-2T10 IC903
| Application | | Profiling | | Overall Length (OAL) | 1.215″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC903 |
| Flute Count (NOF) | 2 | Coating | AlTiN |
| Corner Radius (RE) | 0.315″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 5/8″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Body Material | Carbide |
| Functional Length (LF) | 0.752″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | MULTI-MASTER, interchangeable 2 flute, solid carbide, ball nose milling heads. Center cutting, high tolerance (h9 milling head diameter) ground rake and edge. May be used for finishing applications and machining hardened steel | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.096
