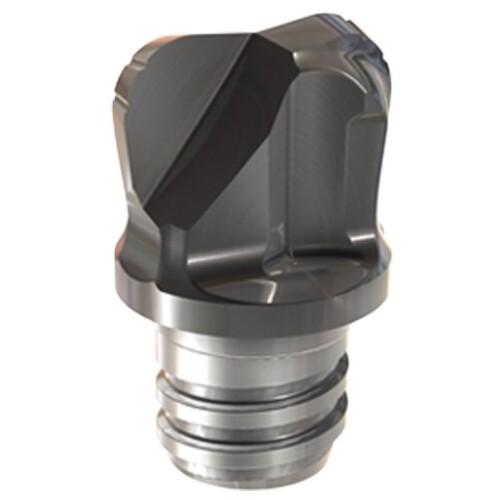

MM HT120NCSR3.0-2T08 IC908
End Mill Head; 0.472″ Dia. × 0.217″ LOC × 0.7″ Max Depth × 0.453″ Shank Dia. × 3/4″ OAL ; 2 FL ; T08 ; Carbide ; TiAlN ; IC908

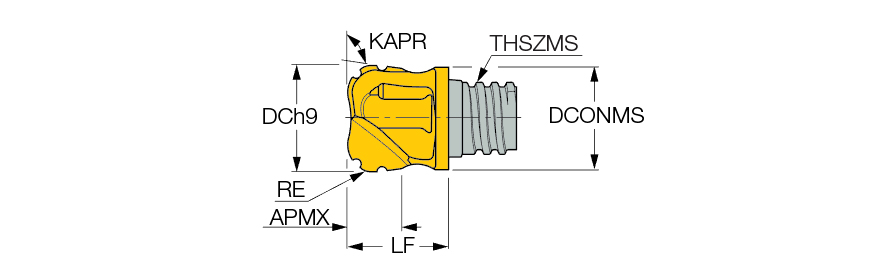

| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | Undercutting | | Grade | IC908 |
| Cutting Diameter (DC) | 0.472″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.1181″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | End Shape | Profile |
| Cutting Depth Maximum (CDX) | 0.7″ | Tool Type | Solid carbide center cutting endmills 90° |
| Depth of Cut Maximum (APMX) | 0.217″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 0.437″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 3/4″ |
Product Features
| Family Description | 2 flute chip splitting toroidal solid carbide milling heads. | Country of Origin | Israel |
| Remarks | For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.066
