47D-1088TURQ25 IN2005

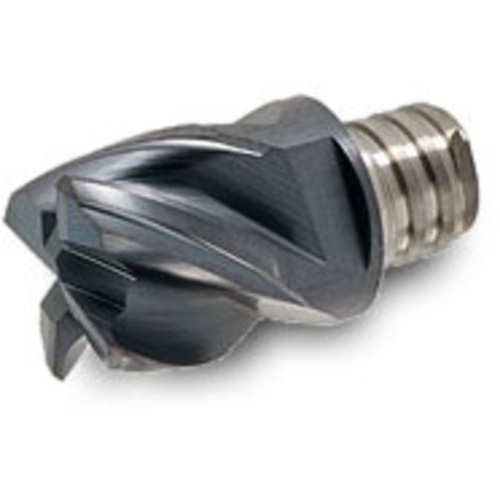

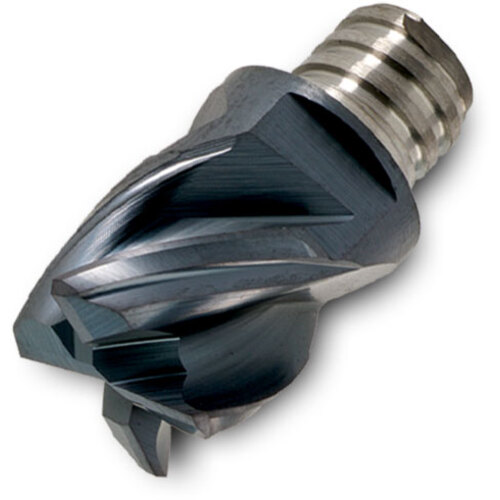

End Mill Head; 1″ Dia. × 0.88″ LOC × 0.7″ Max Depth × 0.94″ Shank Dia. × 1.098″ OAL ; 5 FL ; Carbide ; TiAlN ; IN2005

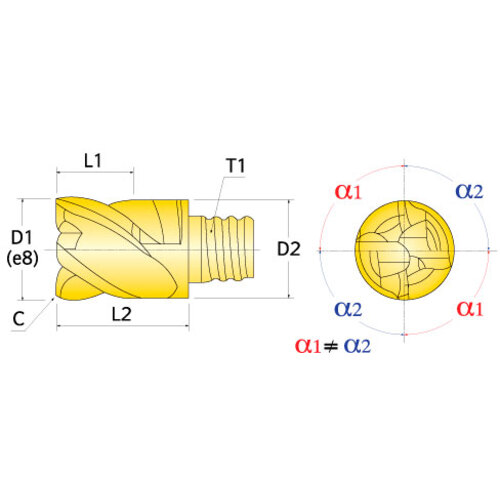

| Cutting Diameter (DC) | 1″ | Overall Length (OAL) | 1.098″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IN2005 |
| Flute Count (NOF) | 5 | Coating | TiAlN |
| Corner Radius (RE) | 1/4″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.88″ | Ramping Angle Maximum (RMPX) | 1 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.94″ | Body Material | Steel |
| Functional Length (LF) | 1.45″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.250 R |
| Flute Helix Angle (FHA) | 38 Degrees |
Product Features
| Family Description | Corner: Sharp, Chamfer & Radius options | Country of Origin | Israel |
Shipping Info
Package Weight
0.462
