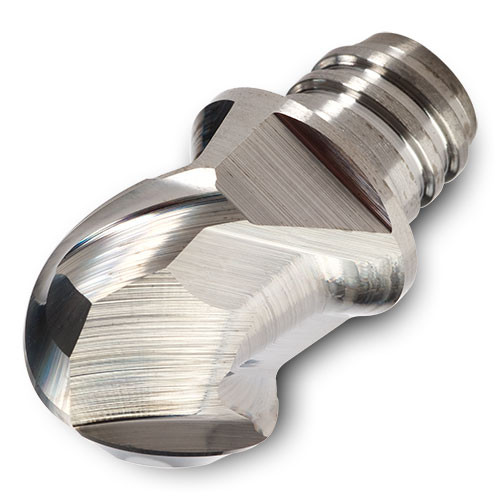

45B-1086TURB14-P IN05S
End Mill Head; 1″ Dia. × 0.86″ LOC × 0.7″ Max Depth × 0.94″ Shank Dia. × 1.098″ OAL ; 2 FL ; Carbide ; IN05S
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 2 | Grade | IN05S |
| Corner Radius (RE) | 1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.86″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.94″ | Body Material | Steel |
| Functional Length (LF) | 1.45″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Sharp edge and polished flutes for non-ferrous materials | Country of Origin | Israel |
Shipping Info
Package Weight
0.44
