47A-5004T8RA09 IN2006

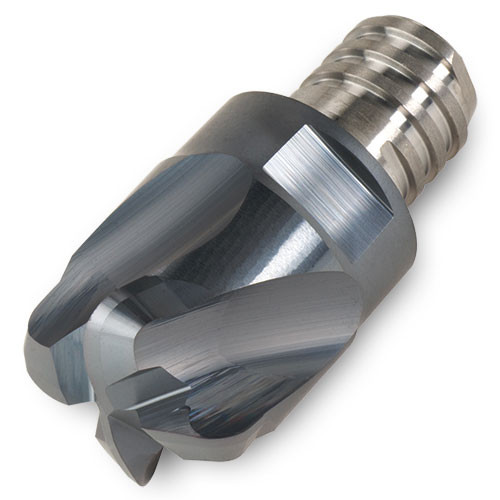

End Mill Head; 1/2″ Dia. × 0.023″ LOC × 0.7″ Max Depth × 0.48″ Shank Dia. × 1.098″ OAL ; 4 FL ; Carbide ; TiAlN ; IN2006
| Cutting Diameter (DC) | 1/2″ | Grade | IN2006 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.023″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Functional Length (LF) | 0.649″ | Body Material | Steel |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Length
2.10000
Package Width
2.00000
Package Height
.75000
Package Weight
0.068
