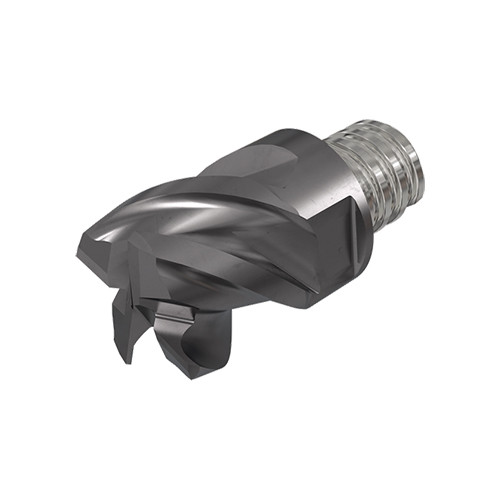

MM EC120H09C5-4T08CF IC908
End Mill Head; 12 mm Dia. × 9 mm LOC × 11.7 mm Shank Dia. × 24.45 mm OAL ; 4 FL ; T08 ; Carbide ; TiAlN ; IC908

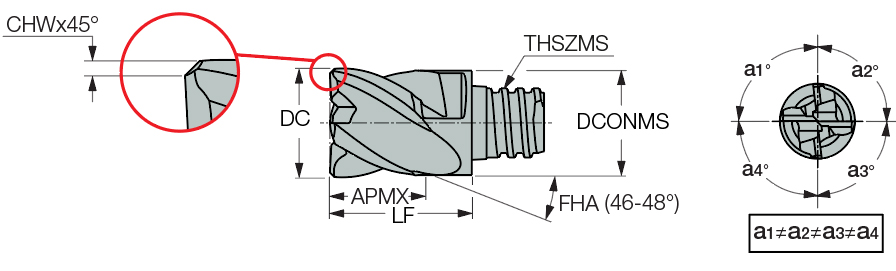

| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 12 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 16.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 47 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 24.45 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable carbide heads. 4 flute with different helix (46 - 48°) and variable pitch for roughing and finishing operations. High material removal rates CHATTERFREE, for machining alloyed steel | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.064
