45P12012T8RA60 IN2005

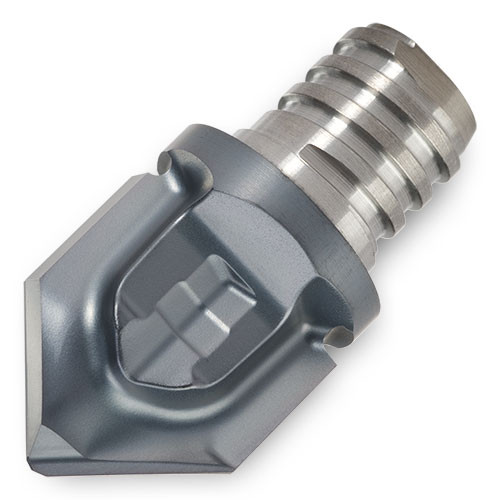

End Mill Head; 0.059″ Dia. × 0.138″ LOC × 0.7″ Max Depth × 0.453″ Shank Dia. × 1.098″ OAL ; 2 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.059″ | Grade | IN2005 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Profile Angle (PRFA) | 120 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Cutting Diameter Maximum (DCX) | 0.4724″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.138″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Drill Protruding Length | 0.14″ |
| Functional Length (LF) | 0.598″ | Body Material | Steel |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Included Angle options: 144° 120° 100° 90° 80° & 60° 80° Incl. for countersink according to ANSI B18.3 Flat Head Cap Screw (up to 82°) 2 Flute | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
