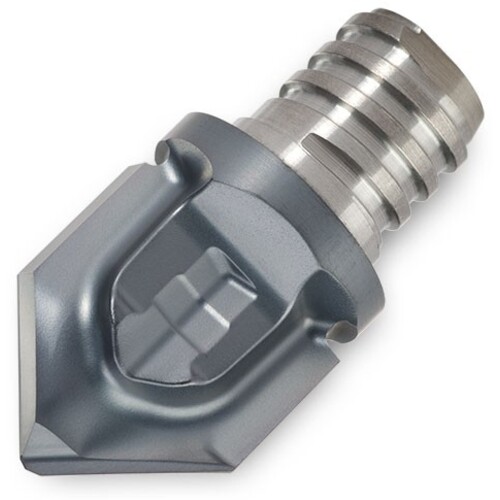

45N10409T6RA45 IN2005 EM
End Mill Head; 1″ Dia. × 0.354″ LOC × 0.7″ Max Depth × 0.96″ Shank Dia. × 0″ OAL ; 2 FL ; T06 ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 1″ | Overall Length (OAL) | 0″ |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Non-Ferrous Metals|Hi-Temp Alloys | Grade | IN2005 |
| Flute Count (NOF) | 2 | Coating | TiAlN |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Profile Angle (PRFA) | 45 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.354″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Drill Protruding Length | 0.19″ |
| Functional Length (LF) | 0.354″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Grades: IN2005 Corner: 30 deg., 45 deg., 60 deg. and 72 deg. | Country of Origin | Israel |
Shipping Info
Package Weight
0.037
