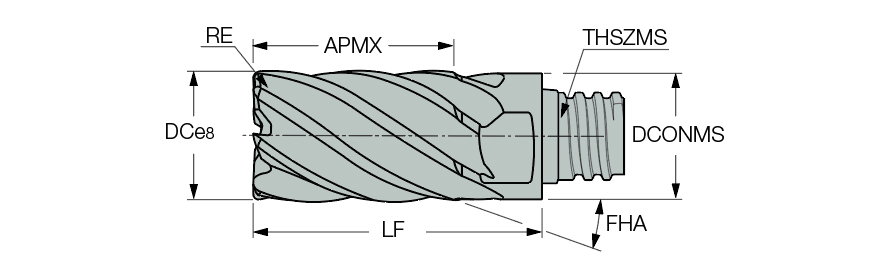

MM EC100H15R05CF-7T06 IC908
End Mill Head; 10 mm Dia. × 15 mm LOC × 9.6 mm Shank Dia. ; 7 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Rampdown | Shouldering | | Coating | TiAlN |
| Cutting Diameter (DC) | 10 mm | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 7 | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Body Material | Carbide |
| Functional Length (LF) | 22 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 36 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
Product Features
| Family Description | Interchangeable 7-9 flute solid carbide endmill heads with 1.5xD flute lengths, different helix, variable pitch and various corner radii | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.056
Related Documentation
- Intended for high-speed trochoidal milling and finishing operations with max. width of cut =0.1xDC - Reinforced Weldon shanks are strongly recommended - In cases of unfavorable machining conditions, the cutting data should be decreased by 20-30%
