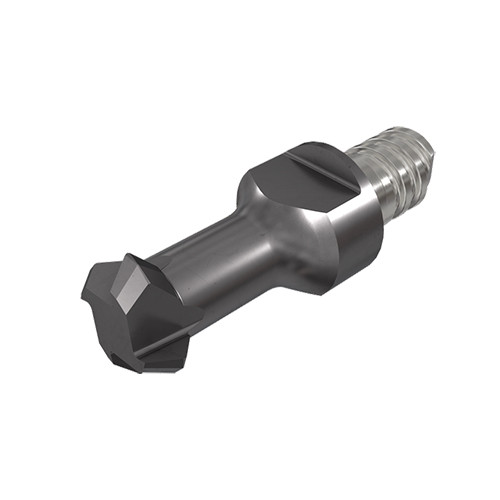

MM TS077-45-20A-4T05 IC908

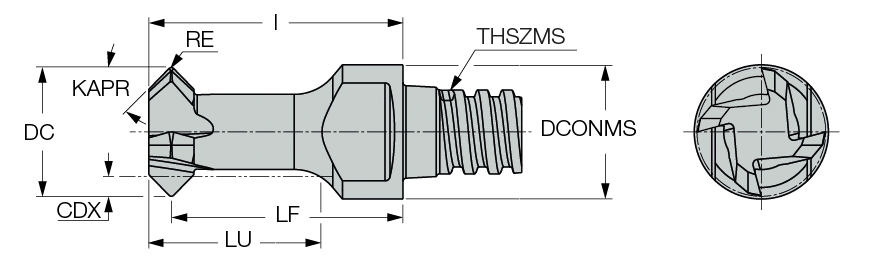

End Mill Head; 0.303″ Dia. × 0.047″ Max Depth × 0.315″ Shank Dia. × 0.878″ OAL ; 4 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 0.303″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Tool Type | Chamfering endmills |
| Cutting Depth Maximum (CDX) | 0.047″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 0.545″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.878″ |
Product Features
| Family Description | MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. | Country of Origin | Israel |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.029
