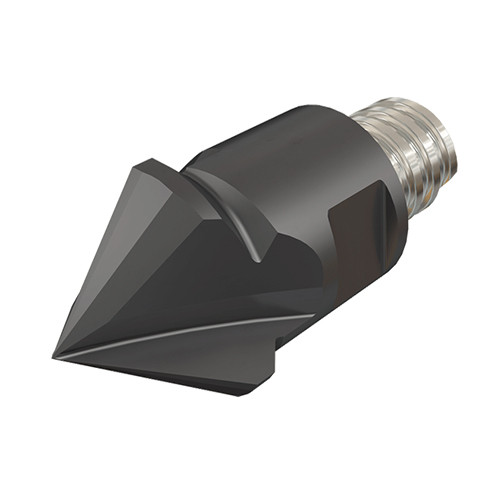

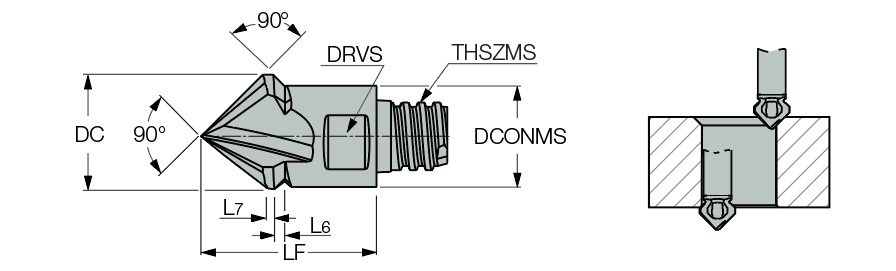

MM EDF094-090-76-3T05 IC908
End Mill Head; 0.37″ Dia. × 0.299″ Shank Dia. × 0.772″ OAL ; 3 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering | Chamfering & Bottom Deburring | Countersinking | | Profile Angle (PRFA) | 90 Degrees |
| Cutting Diameter (DC) | 0.37″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | End Shape | Chamfer|Countersink |
| Connection Diameter Machine Side (DCONMS) | 0.299″ | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 0.492″ | Body Material | Carbide |
| Overall Length (OAL) | 0.772″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable 3 flute solid carbide heads for upper and bottom chamfering. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.032
