MM TS105-N20D-06T04 IC928
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 0.364″ |
| Cutting Diameter (DC) | 0.413″ | Grade | IC928 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0157″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.079″ | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 0.079″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 0.591″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features

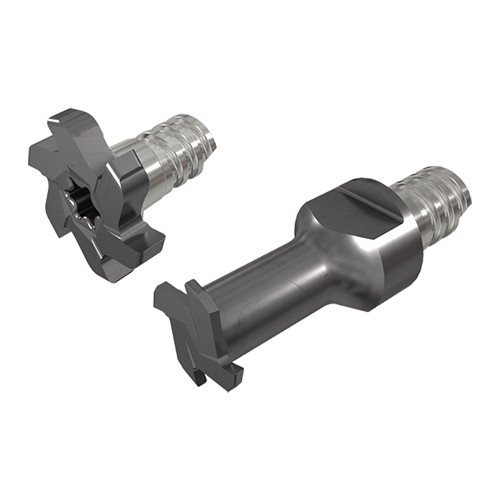

| Family Description | MULTI-MASTER interchangeable solid carbide T-Slot milling heads | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.066
