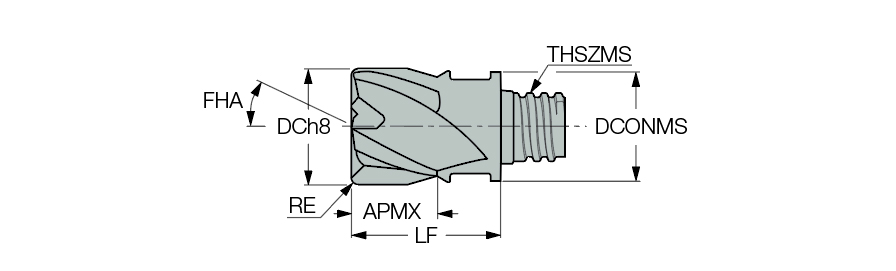

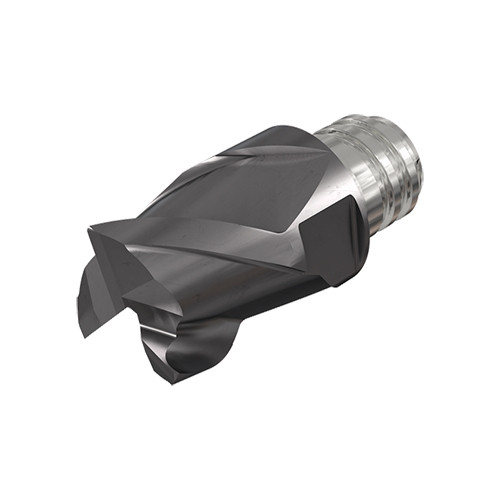

MM ECU077E04R020-3T05 IC908
End Mill Head; 0.303″ Dia. × 0.1575″ LOC × 0.303″ Shank Dia. × 0.673″ OAL ; 3 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |
| Cutting Diameter (DC) | 0.303″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | End Shape | 90° |
| Cutting Diameter Maximum (DCX) | 0.303″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.1575″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.303″ | Body Material | Carbide |
| Functional Length (LF) | 0.394″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 38 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.673″ | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 3 flute undersized solid carbide heads for keyways (DIN 6885) | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.028
