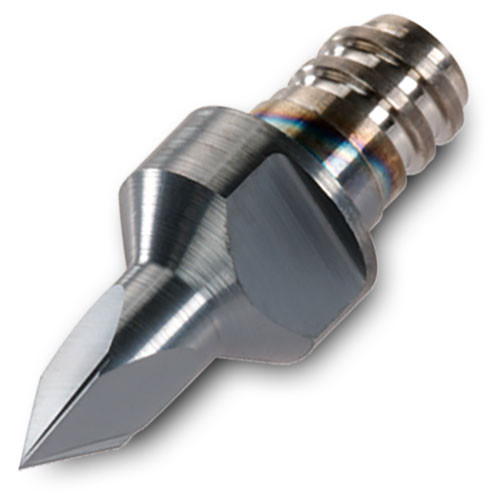

46Q-1550TQRA60 IN2005
End Mill Head; 0.15″ Dia. × 0.005″ LOC × 0.7″ Max Depth × 0.3″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; TiAlN ; IN2005
| Cutting Diameter (DC) | 0.15″ | Grade | IN2005 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 3 | Profile Angle (PRFA) | 60 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Depth of Cut Maximum (APMX) | 0.005″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 0.31″ | Body Material | Steel |
| Overall Length (OAL) | 1.098″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
