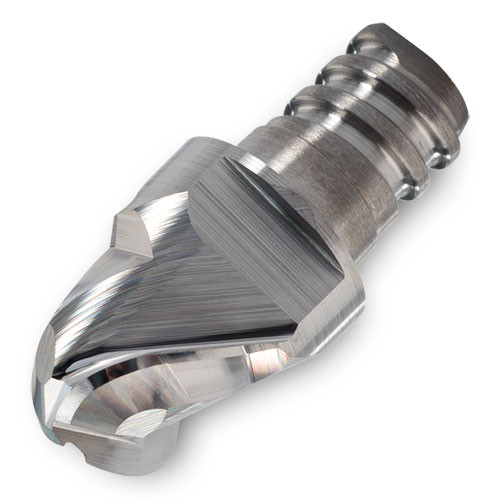

46B-2520TQRC04-P IN05S
End Mill Head; 1/4″ Dia. × 0.2″ LOC × 0.7″ Max Depth × 0.3″ Shank Dia. × 1.098″ OAL ; 3 FL ; Carbide ; IN05S
| Cutting Diameter (DC) | 1/4″ | Overall Length (OAL) | 1.098″ |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | IN05S |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 1/8″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2″ | Usable Length (LU) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 0.3″ | Body Material | Steel |
| Functional Length (LF) | 0.39″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 38 Degrees |
Product Features
| Family Description | Sharp edge and polished flute for non-ferrous materials | Country of Origin | Usa |
