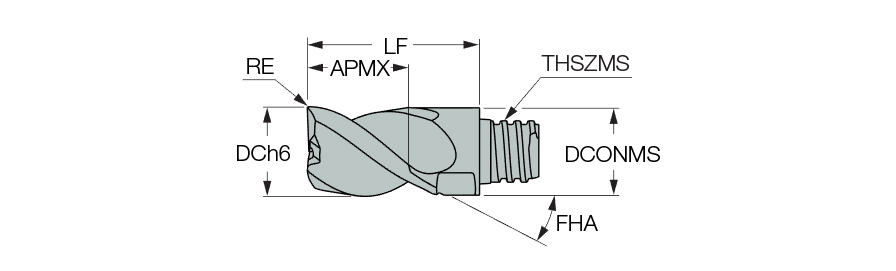

MM EA200H20R2.5CF-3T12 IC08
End Mill Head; 20 mm Dia. × 20 mm LOC × 18.45 mm Shank Dia. × 47.8 mm OAL ; 3 FL ; T12 ; Carbide ; Uncoated ; IC08
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | Uncoated |
| Cutting Diameter (DC) | 20 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Corner Radius (RE) | 2.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 18.45 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 34 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 47.8 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC08 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
Product Features
| Family Description | CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.283
