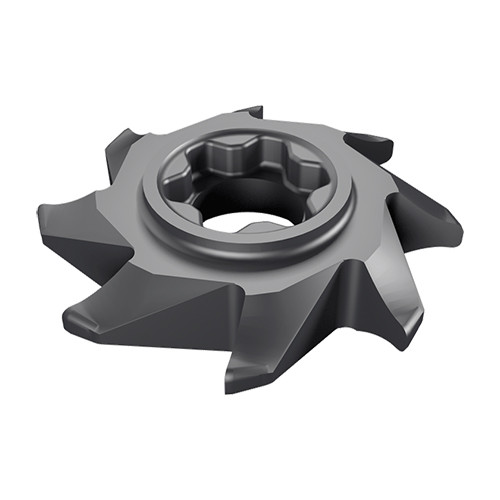

SD D32-M1.50-NO6-SP15 IC908
End Mill Head; 32 mm Dia. × 3.5 mm Max Depth × 15 mm Shank Dia. × 7.7 mm OAL ; 8 FL ; Carbide ; TiAlN ; IC908

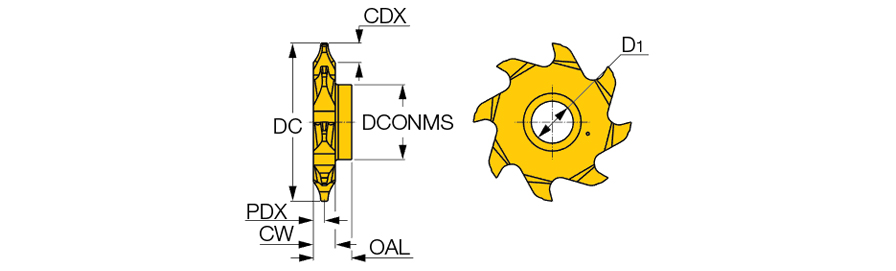

| Application | | Gear tooth profile | | Overall Length (OAL) | 7.7 mm |
| Cutting Diameter (DC) | 32 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 8 | Fixing Hole Diameter (D1) | 8.4 mm |
| Cutting Depth Maximum (CDX) | 3.5 mm | Measurement Type | Metric |
| Cutting Width (CW) | 4.4 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Body Material | Carbide |
| Functional Length (LF) | 7.7 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features

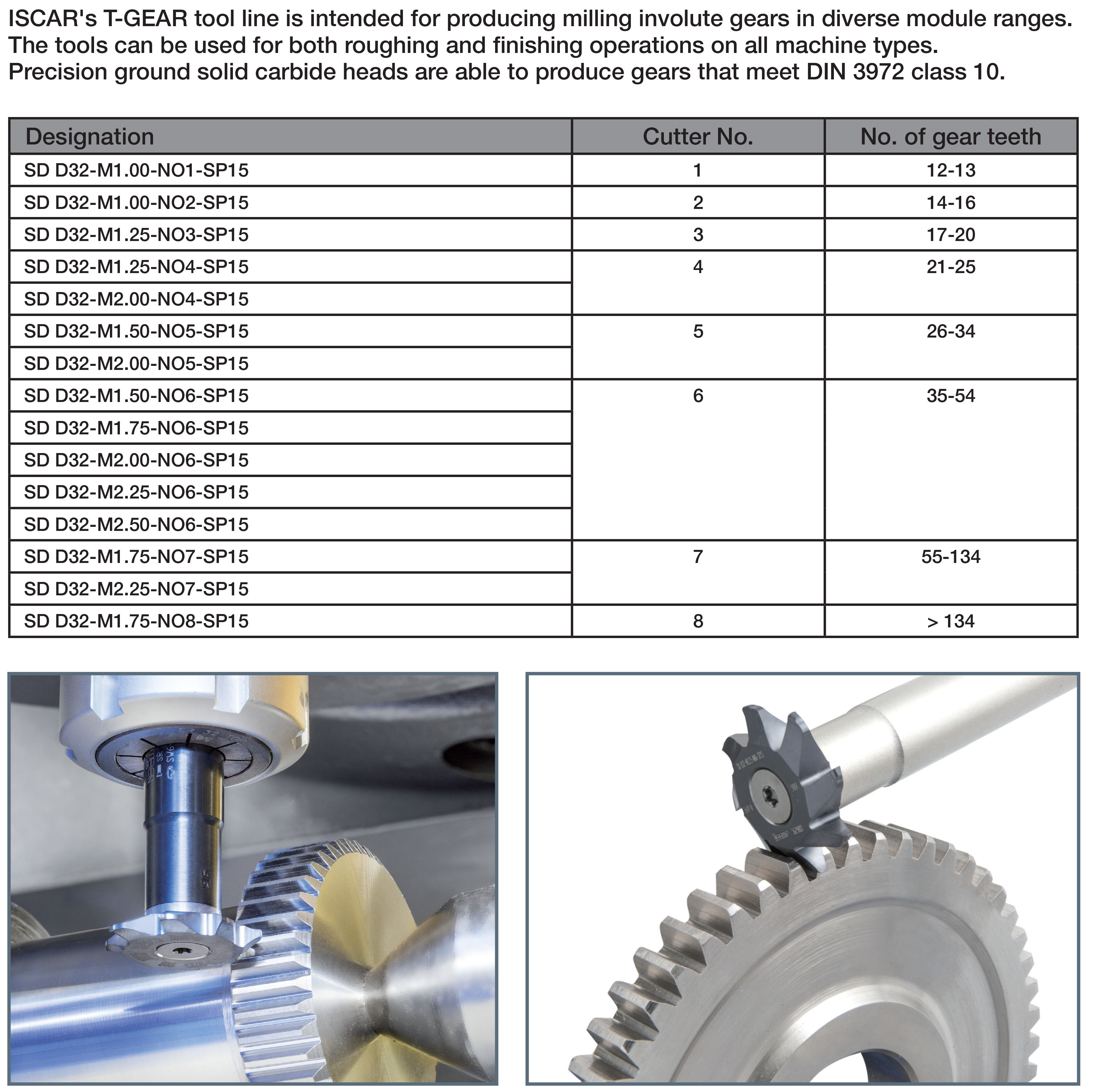

| Family Description | Interchangeable solid carbide milling heads for involute gear profile milling according to DIN 3972 basic profile ll, with module range 1-2.25 mm. Tolerances according to DIN 3962 class-10. Pressure angle 20° | Country of Origin | Israel |
| Remarks | Tightening torque 4 Nxm |
Shipping Info
Package Weight
0.101
