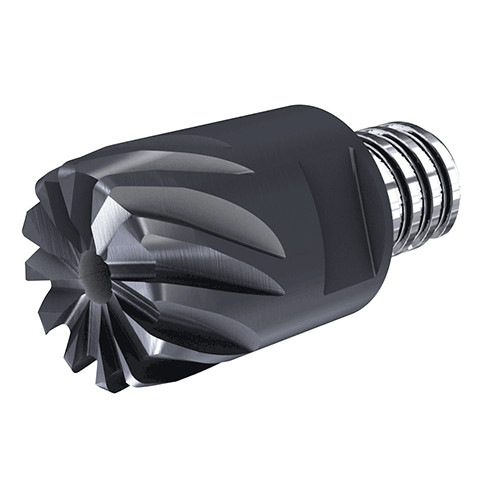

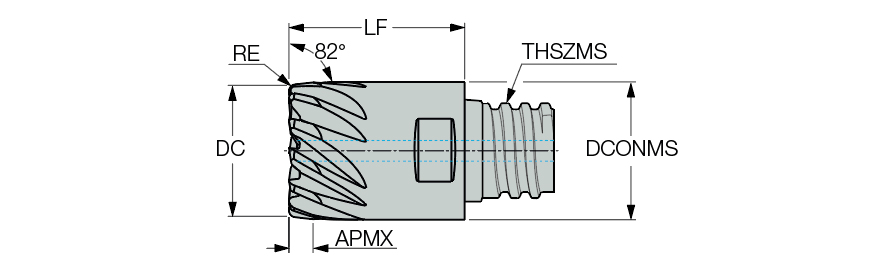

MM ET15/8H4R10CF-12T10H IC908
| Application | | Profiling | Rampdown | Shouldering | | Grade | IC908 |
| Cutting Diameter (DC) | 0.591″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 82 Degrees |
| Flute Count (NOF) | 12 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0394″ | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.63″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 0.1378″ | Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Body Material | Carbide |
| Functional Length (LF) | 0.807″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 25 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.27″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide tapered heads with 20/30° helix, variable pitch and central coolant holes for CHATTERFREE finishing operations. Used mainly for machining titanium and other heat resistant turbine blades | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.187
