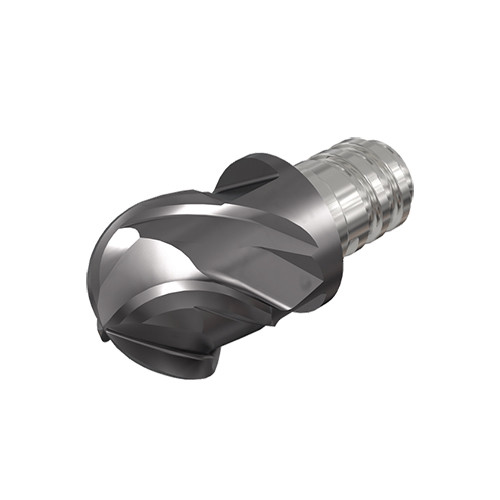

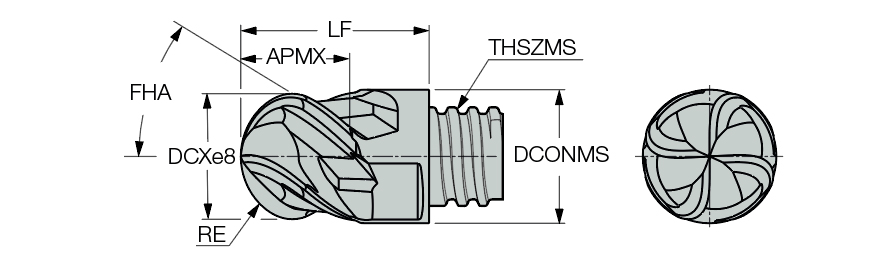

MM EBC.625B47-4T10CF IC903
End Mill Head; 5/8″ Dia. × 0.48″ LOC × 0.6″ Shank Dia. × 1.263″ OAL ; 4 FL ; T10 ; Carbide ; AlTiN ; IC903
| Application | | Profiling | | Overall Length (OAL) | 1.263″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC903 |
| Flute Count (NOF) | 4 | Coating | AlTiN |
| Corner Radius (RE) | 0.3116″ | Coolant Supply Property (CSP) | External |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 5/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.48″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Body Material | Carbide |
| Functional Length (LF) | 0.807″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 45 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide ball nose milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.13
