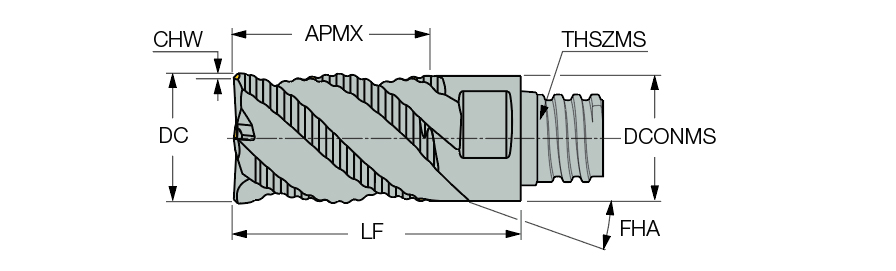

MM ERS375B56-4T06 IC908
End Mill Head; 3/8″ Dia. × 0.563″ LOC × 0.366″ Shank Dia. ; 4 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 3/8″ | Corner Chamfer Width (CHW) | 0.012″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.0035 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.563″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.366″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 0.866″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 46 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.0011 ″/tooth |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads with 1.5xD flute lengths, for high metal removal applications | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.044
Related Documentation
- Maximum depth of cut (APMX) while milling full slot from solid material is 1xDC - Maximum width of cut for milling shoulder with APMX=1.5xDC is 0.3xDC - Reinforced Weldon shanks are strongly recommended - In cases of unfavorable machining conditions, the cutting data should be decreased by 20%-30%
