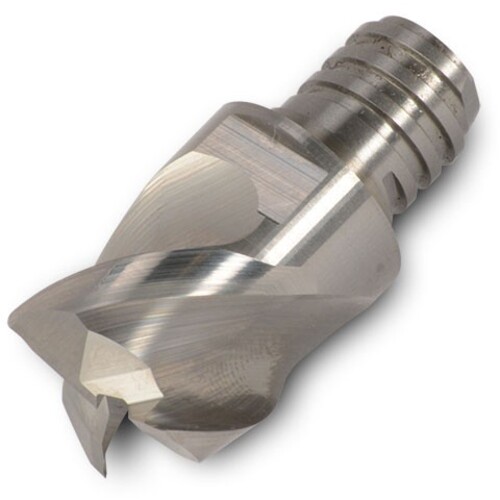

46D-6239TRRD09-P IN05S
| Cutting Diameter (DC) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.96″ |
| Applicable Material | Cast Iron|Non-Ferrous Metals | Functional Length (LF) | 0.39″ |
| Flute Count (NOF) | 3 | Overall Length (OAL) | 0.8″ |
| Corner Radius (RE) | 0.094″ | Grade | IN05S |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.7″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 5/8″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Depth of Cut Maximum (APMX) | 0.7″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.92
