MM GRIT 22P-3.81-0.20 IC528

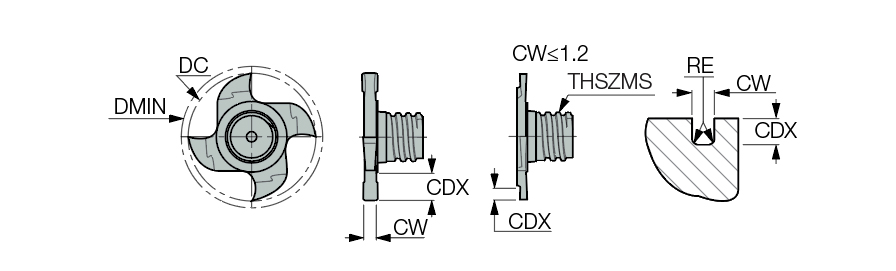

End Mill Head; 21.7 mm Dia. × 0.7″ LOC × 4.5 mm Max Depth × 0.96″ Shank Dia. × 11.91 mm OAL ; 4 FL ; T08 ; Carbide ; TiCN+TiN ; IC528
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 11.91 mm |
| Cutting Diameter (DC) | 21.7 mm | Grade | IC528 |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Coating | TiCN+TiN |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.2 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 4.5 mm | Tool Type | Solid "T" slot cutters |
| Depth of Cut Maximum (APMX) | 0.7″ | Body Material | Carbide |
| Cutting Width (CW) | 3.81 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.96″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron. | Country of Origin | Israel |
| Remarks | Recommended for Orings and retaining rings K-for general steel & cast iron machining P- for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection. For clamping instructions, click on "More Info" |
Shipping Info
Package Weight
0.055
