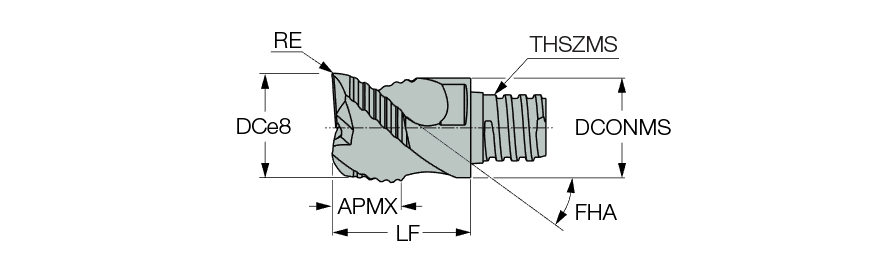

MM ERA200B12R0.2-3T12 IC08
End Mill Head; 20 mm Dia. × 12 mm LOC × 18.45 mm Shank Dia. × 39.3 mm OAL ; 3 FL ; T12 ; Carbide ; Uncoated ; IC08
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | Uncoated |
| Cutting Diameter (DC) | 20 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | End Shape | 90° Alum |
| Cutting Diameter Maximum (DCX) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 18.3 mm | Body Material | Carbide |
| Functional Length (LF) | 25.5 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 45 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 39.3 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Grade | IC08 |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads for machining aluminum at high metal removal rates | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.243
