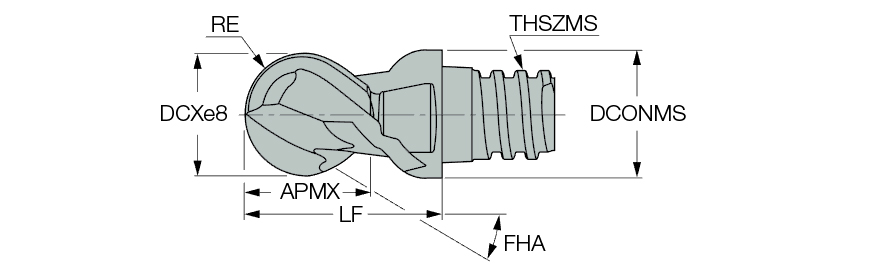

MM EBA200B15-2T12 IC08
End Mill Head; 20 mm Dia. × 15 mm LOC × 18.45 mm Shank Dia. × 39.3 mm OAL ; 2 FL ; T12 ; Carbide ; Uncoated ; IC08
| Application | | Profiling | | Overall Length (OAL) | 39.3 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Flute Count (NOF) | 2 | Coating | Uncoated |
| Corner Radius (RE) | 9.97 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 20 mm | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 18.25 mm | Body Material | Carbide |
| Functional Length (LF) | 25.5 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 45 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable 2 flute high precision solid carbide ball nose heads for machining aluminum | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.226
