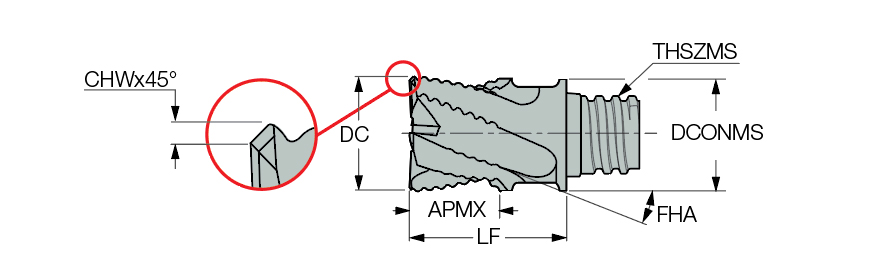

MM ERS120B14-4T08 IC908
End Mill Head; 12 mm Dia. × 14 mm LOC × 11.7 mm Shank Dia. × 30.95 mm OAL ; 4 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 12 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.35 mm |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Cutting Diameter Maximum (DCX) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 14 mm | End Shape | 90° Rougher |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Functional Length (LF) | 23 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 30.95 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads, for high metal removal applications | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.077
