MM EFS250E22-4T15 CF IC908

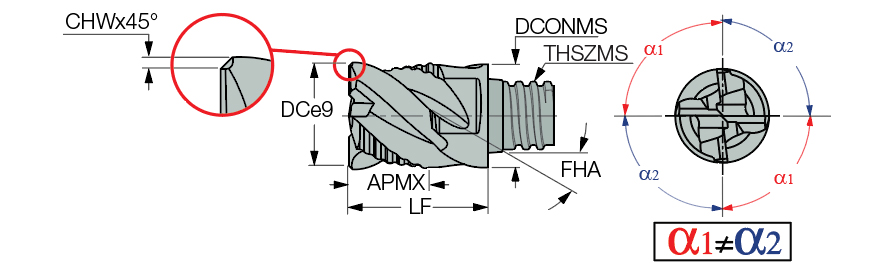

End Mill Head; 25 mm Dia. × 22 mm LOC × 23.9 mm Shank Dia. × 54.6 mm OAL ; 4 FL ; T15 ; Carbide ; TiAlN ; IC908
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 25 mm | Corner Chamfer Width (CHW) | 0.6 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 25 mm | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 22 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 37 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 54.6 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Coating | TiAlN |
Product Features
| Family Description | 4 flute solid carbide heads with 38° helix and variable pitch for CHATTERFREE roughing and finishing applications | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.525
