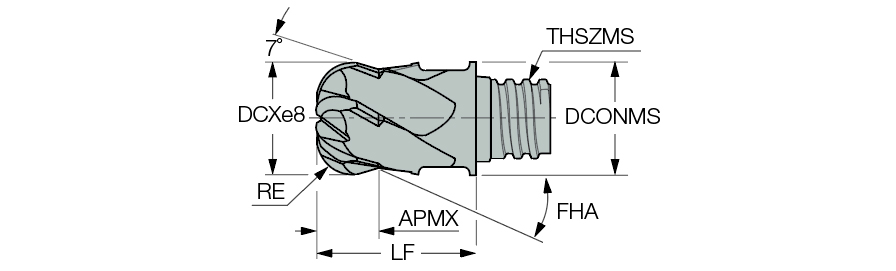

MM ETR080A04R2.0-6T05 IC908
End Mill Head; 8 mm Dia. × 5 mm LOC × 7.7 mm Shank Dia. × 17.1 mm OAL ; 6 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Profiling | Rampdown | Slotting | | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | End Shape | Ball Nose |
| Cutting Diameter Maximum (DCX) | 8 mm | Ramping Angle Maximum (RMPX) | 9 Degrees |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm | Body Material | Carbide |
| Functional Length (LF) | 10 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 17.1 mm |
Product Features
| Family Description | Interchangeable 6 flute torodial solid carbide milling heads | Country of Origin | Israel |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.009
